The D4S Baby Incubator with Skin and Air control system offers highest safety and optimum comfort for the new born.
Special features
- The controller is based on Micro computerized system.
- Large bright displays are easy to monitor and for viewing from a distance.
- Digital display system provided to measure the Infant temperature, Air temperature and to set the required temperature
- Feather touch keys provided for easy operation.
- Bar graph LED system provided to indicate the heater output.
-
Fault indication and alarms for
-
Baby probe failure
Air probe failure
High temperature
Low temperature
High temperature cut off
Heater failure
Fan failure
Power failure - Baby probe / Air probe is made of highly sensitive sensor and interchangeable which does not need field calibration, the probe is made up of silicon sheathed cable, which allows easy cleaning.
- IV stand provided
- Storage drawers provided
- Large Baby tray provided
- Trendelenburge / fowler system provided
- Unit is powder coated
- Hygrometer provided to indicate the relative humidity in the baby compartment.
| Width | 1040 mm |
| Depth | 600 mm |
| Height | 1450 mm |
| Weight | 45 kgs Approx. |
| Baby Bed Size | 550 x 390 mm |
| Tilt | + / – 8o C |
| Recommended Environment for operation | 24o C to 30o C. |
| Humidity | 0 to 95 % R / H |
| Electrical | 230 V AC + / – 10 % 50 Hz. |
| Heater Wattage | 250 Watts Max. |
| Over all Wattage | 450 Watts when heater, Fan is ON. |

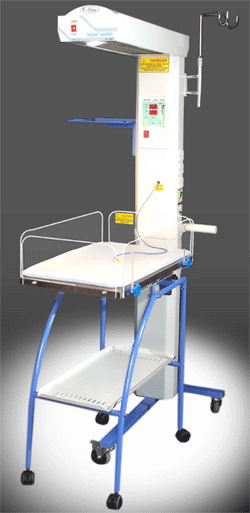

INFANT RADIANT WARMER
- The controller is based on Micro computerized system.
- Servo and Manual Modes.
- Self test system provided
- Large bright displays are easy to monitor and for viewing from a distance.
- Double digital display system provided to measure the Infant temperature and to set the required temperature
- Feather touch keys provided for easy operation.
- Bar graph LED system provided to indicate the heater output.
-
Fault indication and alarms for
-
Baby probe failure
High temperature
Low temperature
High temperature cut off
Heater failure
Power failure - Baby probe is made of highly sensitive sensor and interchangeable which does not need field calibration, the probe is made up of silicon sheathed cable, which allows easy cleaning.
- Single element imported CE marked ceramic heater placed in a parabolic reflector.
- Detachable baby trolley provided with large baby tray made up of stainless steel frame with three side acrylic collapsible walls.
- IV stand provided
- Trendelenburge / fowler system provided
- Unit is powder coated
- Observation lamp provided
- Monitor tray provided
| PHYSICAL PARAMETERS : | ||
| Length | 700 mm | |
| Width | 430 mm | |
| Working level from the ground | 840 mm | |
| Weight Approx | 40 Kg | |
| Castors | 75 mm | |
| RECOMMENDED ENVIORONMENTAL SPECIFICATIONS: | ||
| Operating temperature range: | 20o C to 33o C. | |
| Storage Temperature range | -25o C to 60o C | |
| Operating humidity range | 0 – 100 % RH | |
| SKIN TEMPERATURE | ||
| Range | 32o C to 38o C | |
| Accuracy | + / – 0.2o C | |
| Resolution | 0.1o C | |
| Probe Interchangeability | + / – 0.2o C | |
| Infant required temperature range | 32o C to 38o C | |
| Heater output controllable from 0 to 100 % in manual mode (continuously variable) | ||
| OBSERVATION LAMP | Halogen based. | |
| ELECTRICAL SPECIFICATION | ||
| Electrical supply | 230 V AC + / – 10 % 50 Hz. | |
| Power consumption with heater at max output | 750 W. | |

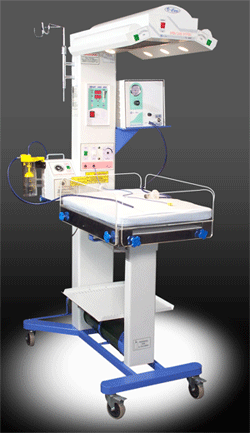

RESUSCITATION UNIT
- The controller is based on Micro computerized system.
- Servo and Manual Modes.
- Self test system provided
- Large bright displays are easy to monitor and for viewing from a distance.
- Double digital display system provided to measure the Infant temperature and to set the required temperature
- Feather touch keys provided for easy operation.
- Bar graph LED system provided to indicate the heater output.
-
Fault indication and alarms for
-
Baby probe failure
High temperature
Low temperature
High temperature cut off
Heater failure
Power failure - Baby probe is made of highly sensitive sensor and interchangeable which does not need field calibration, the probe is made up of silicon sheathed cable, which allows easy cleaning.
- Single element imported CE marked ceramic heater placed in a parabolic reflector.
- The large baby tray made of stainless steel frame with three side acrylic collapsible walls.
- IV stand provided
- Trendelenburge / fowler system provided
- Unit is powder coated
- Observation lamp provided
- Monitor tray provided
PHOTOTHERAPY:
A halogen based phototherapy unit provided for Hyperbilirubinaemia management. Three halogen lamps are fitted on either side of the over head box. It is fitted in an angle position to focus the radiation on the Infant for maximum effectiveness.
APGAR TIMER:
The digital apgar timer is switched ON at the moment of birth and an acoustic alarm will sound after 1, 5, 10, 15 and 20 minutes, reminding to examine the new born according to the Apgar scheme.
X-RAY CASSETTE TRAY:
The Neonatal Resuscitation unit heater box swivels away from the baby bed to make room for X-ray unit. Convenient tray assists you to achieve X-rays without disturbing the baby.
ELECTRICAL SLOW SUCTION:
The slow suction unit is designed to work on latest diaphragm technology and results in being maintenance free, noiseless and provides high performance. The vacuum level can be adjusted with the regulator. A vacuum gauge provided to monitor the pressure.
RESUSCITATOR:
The D4S Resuscitator allows the resuscitation of distressed newborns in delivery room or in case of emergency. Reanimation is performed with positive pressure to the mask or endo tracheal tube with manual control and free expiration. The minimum and maximum pressure values can be preset and are clearly indicated on the monometer. The Resuscitator operates when connected to the air oxygen mixer or through any other flow meter.
| PHYSICAL PARAMETERS : | ||
| Mattress | ||
| Length | 710 mm | |
| Width | 500 mm | |
| Working level from the ground | 900 mm | |
| Weight Approx | 45 Kg | |
| Castors |
100 mm with 2 brake wheels and 2 non brake wheels.
|
|
| RECOMMENDED ENVIORONMENTAL SPECIFICATIONS: | ||
| Operating temperature range: | 20o C to 33o C. | |
| Storage Temperature range | -25o C to 60o C | |
| Operating humidity range | 0 – 100 % RH | |
| SKIN TEMPERATURE | ||
| Range | 32o C to 38o C | |
| Accuracy | + / – 0.2o C | |
| Resolution | 0.1o C | |
| Probe Interchangeability | + / – 0.2o C | |
| Infant required temperature range | 32o C to 38o C | |
| Heater output controllable from 0 to 100 % in manual mode (continuously variable) | ||
| PHOTOTHERAPY UNIT | ||
| Supply to each lamp | ||
| OBSERVATION LAMP | Halogen based. | |
| ELECTRICAL SUCTION | ||
|
Maximum suction |
400 mm of Hg. | |
| Vacuum gauge range | 0 -760 mm of Hg | |
| ELECTRICAL SPECIFICATION | ||
| Electrical supply | 230 V AC + / – 10 % 50 Hz. | |
| Power consumption with heater at max output | 750 W. | |
| Power consumption with heater, Phototherapy and Observation Lamp ON | 1250 W. | |
| NOTE: BEST RESULTS OBTAINED IN LOW CONVECTIVE ENVIRONMENT. | ||
PHOTOTHERAPY UNIT
The D4S Phototherapy units are established for the treatment of hyperbilirubinaemia, which greatly reduces the need to resort to costly, relatively complex, exchange transfusion of blood. The medical blue tubes give high output of light in the therapeutic range, while the extended spectrum of the white light tubes allow better observation of the Infant’s skin color while in use.
The Phototherapy units are mounted on a light weight mobile stand with four castors. They are easy to use and have the following features,
HEAD TILT:
Top tray is tiltable and it can be locked at any desired angle. This feature is of great help when used with radiant warmers.
HEIGHT ADJUSTMENT:
The height adjustment facility enables the unit to be used with a variety of Baby Incubators, cribs and costs.
| TECHNICAL SPECIFICATIONS | ||
| Stand Type Phototherapy Unit | ||
| Height | 1565 mm | |
| Width | 730 mm | |
| Length | 500 mm | |
| Weight | 25 Kg | |
| Castors | 50 mm | |
| Finish | Powder coated | |
| Power Supply | 230 V + / – 10 % 50 Hz | |
| Power Consumption | 20 W each lamp | |
| Total power requirement | 240 W | |
| Main fuse | 1.5 A | |

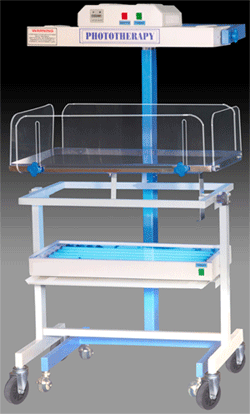

| Trolley Type Phototherapy Unit | ||
| Height | 1015 mm | |
| Width | 730 mm | |
| Length | 525 mm | |
| Weight | 20 Kg | |
| Castors | 100 mm | |
| Finish | Powder coated | |
| Power Supply | 230 V + / – 10 % 50 Hz | |
| Power Consumption | 20 W each lamp | |
| Total power requirement | 160 W | |
| Main fuse | 1.0 A | |
